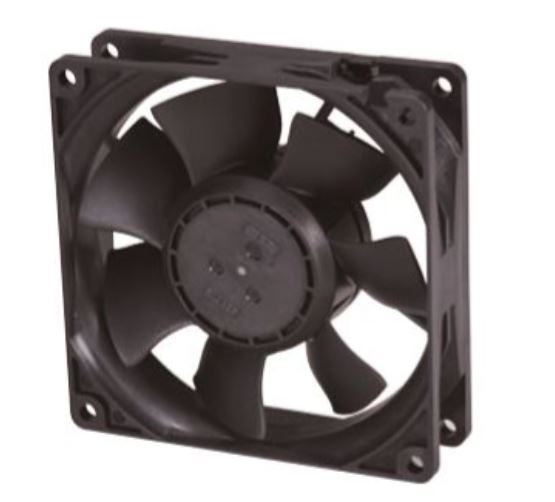

Refrigeration Fans - 09225JS-12J-FA-00
Category |
Refrigeration Fans |
Part Number |
09225JS-12J-FA-00 |
Bearing Type
|
Sleeve Bearing
|
COO
|
China
|
Current
[A]
|
0.04
|
Fan Speed
[RPM]
|
1700
|
Frame Depth
[mm]
|
25
|
Frame Height (mm)
|
92
|
Frame Width (mm)
|
92
|
Input Power
[W]
|
0.5
|
Life Expectancy L10
|
40 degree C 50,000 Hours
|
Mass (g)
|
108
|
Max. Air Flow
[CFM]
|
24.1
|
Max. Air Flow
[m3 per min]
|
0.68
|
Max. Static Pressure
[In H2O]
|
0.06
|
Max. Static Pressure
[Pa]
|
14.9
|
Production Status
|
Active
|
Noise
[dB]
|
21
|
Nominal Voltage
[V]
|
12
|
Operating Voltage - Lower (V)
|
6
|
Operating Voltage - Upper (V)
|
13.2
|
Rib/Flange
|
Flange
|
Series Frame Width
[mm]
|
92
|
Tach / Locked Rotor Output
|
Standard 2 Wire
|
