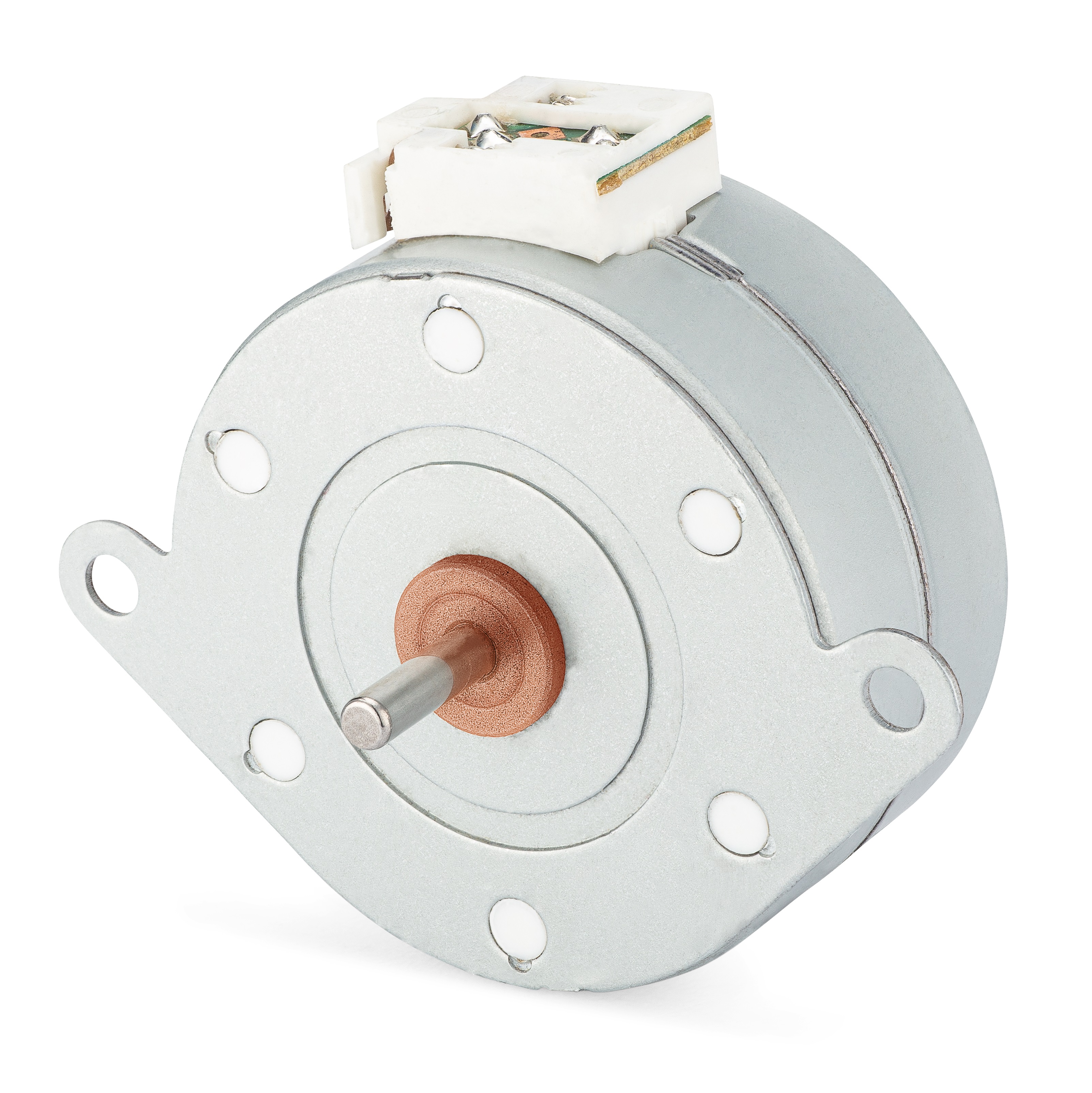

Standard Permanent Magnet - PM35L-048-HHC7

Get a sample
Distributor |
Availability |
|
---|---|---|
Distributor Digi-Key Electronics |
Availability 162 |
Specification Sheet |
Category |
Standard Permanent Magnet |
Part Number |
PM35L-048-HHC7 |
Drive Sequence
|
bipolar constant current
|
Drive Voltage (V)
|
24
|
Frame Height (mm)
|
35
|
Frame Length
[mm]
|
22.2
|
Frame Width (mm)
|
35
|
Holding Torque
[mN-m]
|
70
|
Holding Torque
[x10-4 N-m]
|
700
|
Magnet Material
|
bonded Nd-Fe-B
|
Magnet Type
|
MS70
|
Max Speed (pps)
|
800
|
Max Speed (rpm)
|
1000
|
Rated Current per Phase (A)
|
600
|
Resistance (ohms)
|
15
|
Step Angle (degrees)
|
7.5
|
Steps per Rev. of Motor
|
48
|
Drive IC
|
UDN2917EB
|
