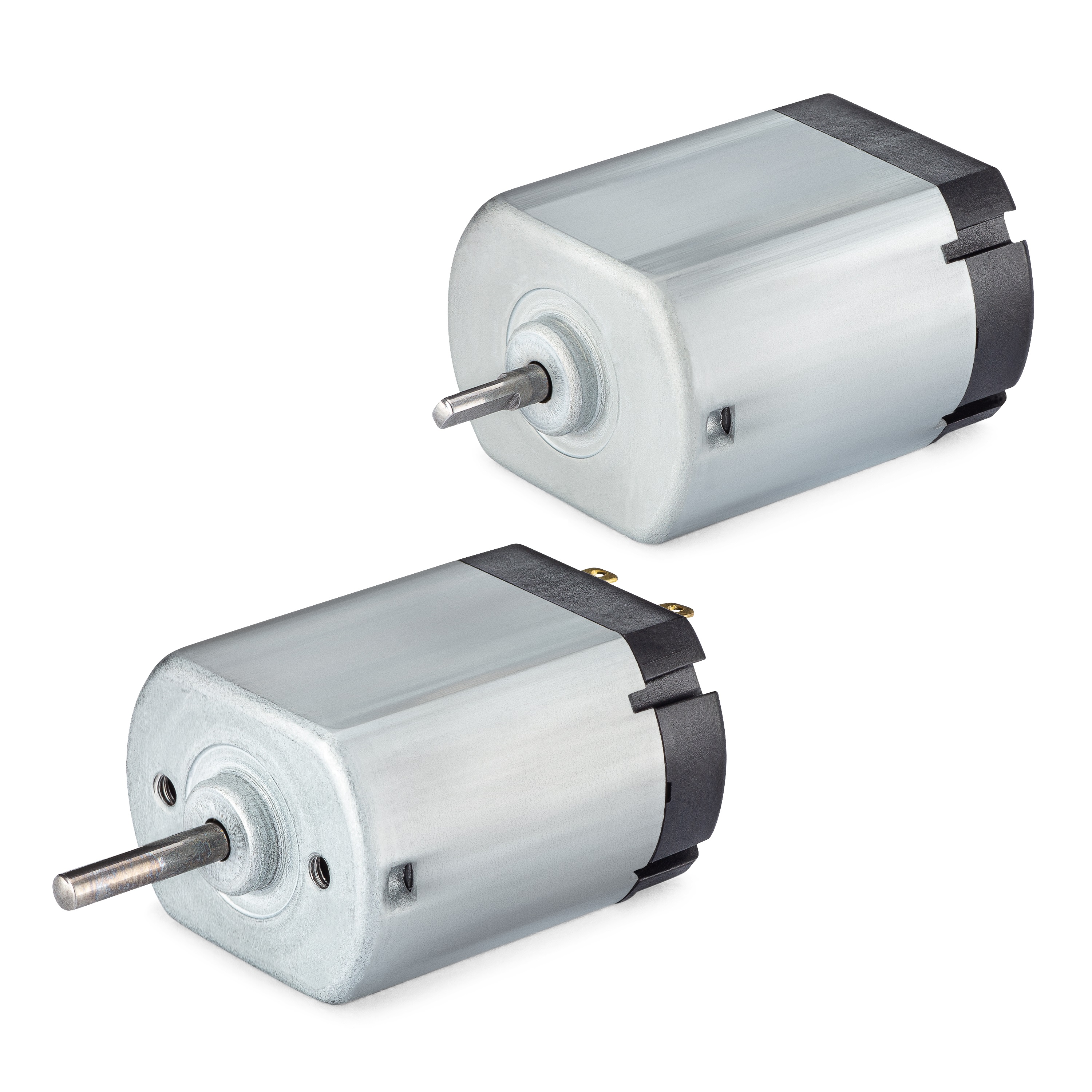

Standard Flat Brush - PWN10AWB17
Category |
Standard Flat Brush |
Part Number |
PWN10AWB17 |
Brush Material
|
Carbon
|
Frame Height (mm)
|
15.4
|
Frame Length
[mm]
|
25
|
Frame Width (mm)
|
20.4
|
Mass (g)
|
22
|
No Load Current (mA)
|
180
|
No Load Speed (rpm)
|
13350
|
Operating Voltage - Lower (V)
|
2
|
Operating Voltage - Upper (V)
|
6.5
|
Rated Current (mA)
|
430
|
Rated Load
[mN-m]
|
0.98
|
Rated Speed (rpm)
|
12000
|
Rated Voltage (V)
|
6
|
Shaft Diameter (mm)
|
2
|
Shaft Length (mm)
|
11
|
Starting Current (mA)
|
2650
|
Starting Torque
[mN-m]
|
9.7
|
