Hybrid Stepper Motor With Electric Gripper

electric grippers for robots in different sizes

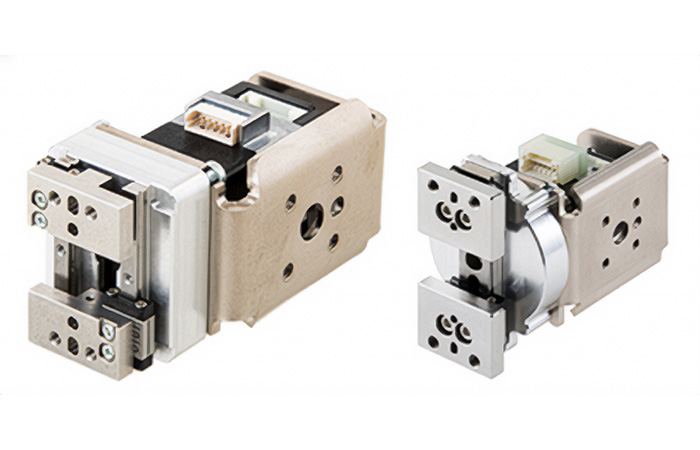

MinebeaMitsumi developed an electric gripper that is driven by a hybrid stepping motor, and is ideal for robotic applications. The design adopts a unique, patent pending spiral cam drive mechanism, and is highly reliable due to its simple structure. It is also possible to mount the gripper to multiple sides of a robotic arm due to it’s small size and lightweight.

Features
  • Simple mechanism - small size and lightweight
  • High precision
  • High reliability
  • Unique spiral cam drive structure

Patent-Pending Spiral Cam Drive Mechanism

The unique spiral cam drive enables a ultra-compact form factor and energy efficient design. By integrating a hybrid stepping motor you can achieve high precision grip force control, speed control and positioning control. The gripper is able to pick up objects with irregular shapes and of various sizes with high accuracy using a high resolution encoder.

Customers can combine electric gripper with the ST-Box for advanced detection, programming and control functions. This closed loop stepping servo system can interface with PLC and robots through IO and RS485 communication. It is also possible to set parameters and program the gripper for 16 different situational settings. Significant energy savings can be realized – more than 30% over compressed air grippers.

Product Specifications

Motor Size

(Number of Fingers)

Stroke

(mm)

Grip Force

(N)

Repetitive Position Accuracy

(mm)

Height

(mm)

Length

(mm)

Width

(mm)

Weight

(g)

Data Sheet

20 mm (2)

11

0.7-2.4

± 0.02

61

30

30

80

25 mm (2)

13

2.0-6.0

± 0.02

68

38

38

190

25 mm (3)

13

1.1-3.5

± 0.02

66

Φ 69

-

250

IP Rating: IP20

Make sure to decelerate when gripping an object or when the fingers (including finger mounting part) make contact with one another.

A collision without deceleration may cause noise, vibration, or damage.

Product Demo
