Compression Measurement for Industrial Weighing Systems

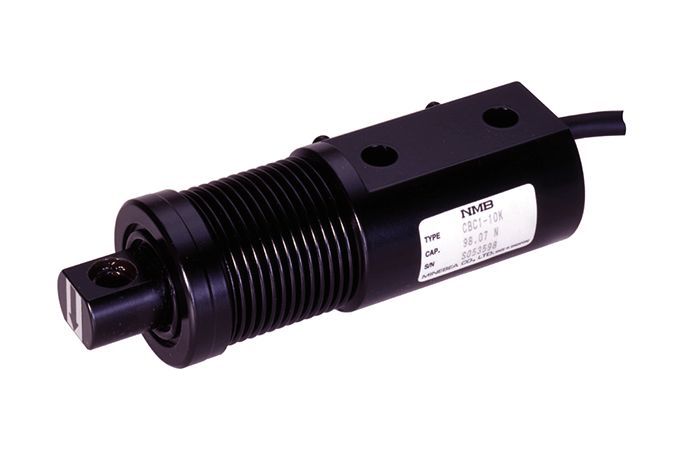

CBC1 Series

Features
  • Beam type load cell for low capacity applications
  • Suitable for weighing systems with low mounting height
Resources
Specification Sheet No.KT51696-2-C (191KB)
Instruction manual (PDF) No.ENKT60242-1 (159KB)
Specifications
Rated capacity
49.03 N {5 kgf}~19.61 kN {2 tf}
Safe overload
150% R.C.
Ultimate overload
200% R.C.
Rated output
2 mV/V+0.004 mV/V/-0 mV/V
Non-linearity
0.03% R.O.
Hysteresis
0.02% R.O.
Repeatability
0.02% R.O.
Excitation, recommended
12 V or less
Excitation, maximum
20 V
Zero balance
±0.02 mV/V
Input resistance
420 Ω±40 Ω
Output resistance
350 Ω±3 Ω
Insulation resistance
2,000 MΩ or more (DC50 V) (between bridge and main body)
Temp. range, compensated
-10℃ ~ 70℃
Temp. range, safe
-20℃ ~ 100℃
Temp. effect on zero
0.02% R.O./10℃
Temp. effect on output
0.02% LOAD/10℃
Cable
φ6.3, 4-cores shielded 3 m cable directly attached, Y-crimp type terminal lugs are attached at cable end.
Class of protection
IP64 or equivalent
Material of element
Alloy steel
Paint
Epoxy resin (Black)
Durability
1,000,000 times with rated load applied.
Mechanical performance
Maximum ultimate lateral load: 50% R.C.
Maximum ultimate axial load: 100% R.C.
List of Part Numbers
Parts No.
Rated capacity
Natural frequency
Rated displacement
Weight
(Approx.)
CBC1-5K
49.03 N {5 kgf}
250 Hz
0.29 mm
1 kg
CBC1-10K
98.07 N {10 kgf}
417 Hz
0.29 mm
1 kg
CBC1-20K
196.1 N {20 kgf}
556 Hz
0.29 mm
1 kg
CBC1-50K
490.3 N {50 kgf}
1,000 Hz
0.29 mm
1 kg
CBC1-100K
980.7 N {100 kgf}
1,333 Hz
0.29 mm
1 kg
CBC1-200K
1.961 kN {200 kgf}
333 Hz
0.29 mm
2 kg
CBC1-300K
2.942 kN {300 kgf}
492 Hz
0.29 mm
2 kg
CBC1-500K
4.903 kN {500 kgf}
810 Hz
0.29 mm
2 kg
CBC1-1T
9.807 kN {1 tf}
1,000 Hz
0.47 mm
2.8 kg
CBC1-2T
19.61 kN {2 tf}
1,300 Hz
0.67 mm
4 kg
