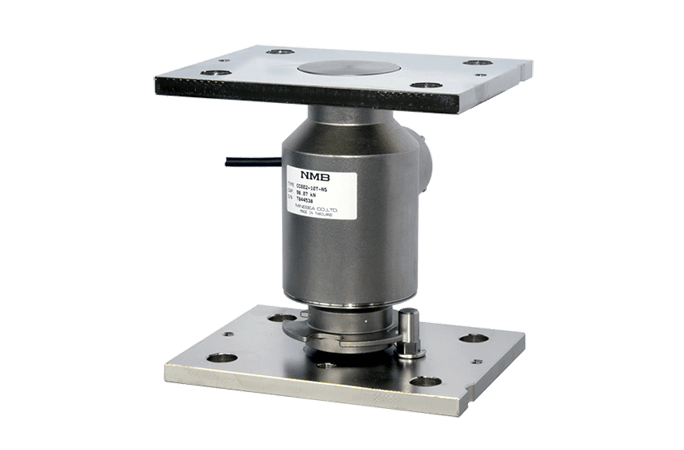

Compression Measurement for Industrial Weighing Systems

CC002 Series

Features
  • High accuracy, double convex canister type
  • Suitable for truck scale applications
  • Hermetically sealed, all stainless steel structure provides excellent protection in harsh environments
Resources
CAD Files CC002 (217KB)
CAD Files Mounting attachment AIC-005B (142KB)
Specification Sheet No.KT52871-2-E (184KB)
Instruction manual (PDF) No.KT60246-1 (52KB)
Specifications
OIML accuracy class
C6
Maximum scale interval
6,000
Rated capacity
10 t ~ 30 t
Minimum detected scale (Vmin)
1 kg ~ 3 kg
Safe overload
150% R.C.
Ultimate overload
200% R.C.
Rated output
2 mV/V±0.002 mV/V
Non-linearity
0.012% R.O.
Hysteresis
0.012% R.O.
Repeatability
0.010% R.O.
Creep
0.008% R.O./30 min
Zero return
0.008% R.O./30 min
Excitation, recommended
12 VDC or less
Excitation, maximum
20 VDC
Zero balance
±0.02 mV/V
Input resistance
770 Ω ~ 830 Ω
Output resistance
695 Ω ~ 705 Ω
Insulation resistance
5,000 MΩ or more (DC50 V) (between bridge and main body)
Temp. range, compensated
-10℃ ~ 40℃
Temp. range, safe
-20℃ ~ 70℃
Temp. effect on zero
0.014% R.O./10℃
Temp. effect on output
0.010% LOAD/10℃
Cable
φ7.0, 6 -cores shielded 12m cable directly attached, and cable end is separated.
Class of protection
IP68 or equivalent
Material of element
Alloy steel
Material of Cover
Stainless steel
Durability
1,000,000 times with rated load applied.
Horizontal maximum
movable distance
10 mm, however, please hit the stopper of the track scale within 5 mm.
Recommendation 2 mm ~ 3 mm
Weight
Approx. 4.5 kg
Accessories
Guide ring
List of Part Numbers
Parts No.
Rated capacity
Minimum detected
scale (Vmin)
Natural frequency
Rated displacement
Weight
(Approx.)
CC002-10T
10 t
1 kg
3,900 Hz
0.2 mm
4.5 kg
CC002-20T
20 t
2 kg
5,500 Hz
0.2 mm
4.5 kg
CC002-25T
25 t
2 kg
6,000 Hz
0.2 mm
4.5 kg
CC002-30T
30 t
3 kg
6,700 Hz
0.2 mm
4.5 kg
Options
Mounting attachment (AIC-005B)
