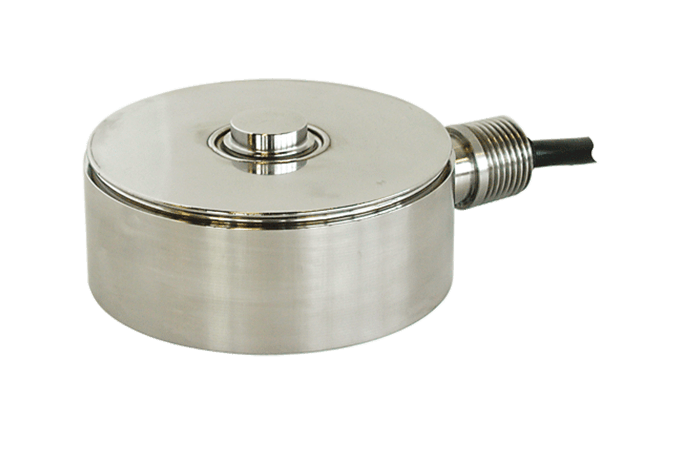

Compression Measurement for Industrial Weighing Systems

CMP1 Series

Features
  • Precise low-profile load cell for compression service
  • All stainless steel construction
Resources
CAD Files CMP1-250K (28KB)
CAD Files CMP1-10T (28KB)
CAD Files CMP1-20T (28KB)
Specification Sheet No.KT51168-2-D (145KB)
Specification Sheet No.KT60244-1-H (68KB)
Specifications
Rated capacity
2.452 kN {250 kgf}~196.1 kN {20 tf}
Safe overload
150% R.C.
Ultimate overload
200% R.C.
Rated output
2 mV/V±0.005 mV/V (CMP1-250K: 1 mV/V±0.005 mV/V)
Non-linearity
0.05% R.O.
Hysteresis
0.05% R.O.
Repeatability
0.05% R.O.
Excitation, recommended
12 V or less
Excitation, maximum
18 V
Zero balance
±0.02 mV/V
Input resistance
350 Ω±3.5 Ω
Output resistance
350 Ω±5 Ω
Insulation resistance
2,000 MΩ or more (DC50 V) (between bridge and main body)
Temp. range, compensated
-10℃ ~ 70℃
Temp. range, safe
-20℃ ~ 80℃
Temp. effect on zero
0.05% R.O./10℃ (CMP1-250K: 0.10% R.O./10℃)
Temp. effect on output
0.10% LOAD/10℃
Cable
φ7, 4-cores shielded 10m cable directly attached, Y-crimp type terminal lugs are attached at cable end.
Class of protection
IP68 or equivalent
Material of element
Stainless steel
Durability
1,000,000 times with rated load applied.
List of Part Numbers
Parts No.
Rated capacity
Natural frequency
Rated displacement
Weight
(Approx.)
CMP1-250K
2.452 kN {250 kgf}
1,900 Hz
0.03 mm
1.8 kg
CMP1-500K
4.903 kN {500 kgf}
2,600 Hz
0.06 mm
1.8 kg
CMP1-1T
9.807 kN {1 tf}
4,000 Hz
0.06 mm
1.8 kg
CMP1-2T
19.61 kN {2 tf}
9,000 Hz
0.06 mm
1.8 kg
CMP1-5T
49.03 kN {5 tf}
12,000 Hz
0.07 mm
1.8 kg
CMP1-10T
98.07 kN {10 tf}
12,000 Hz
0.11 mm
2.0 kg
CMP1-20T
196.1 kN {20 tf}
12,000 Hz
0.14 mm
3.7 kg
Options
Expansion plate, Mounting plate, Mounting attachment with slide-stop mechanism (Flexible stop method: FCA-CMP1-S, Steel ball method: SCA-CMP(-S))
