Compression Measurement for Industrial Weighing Systems

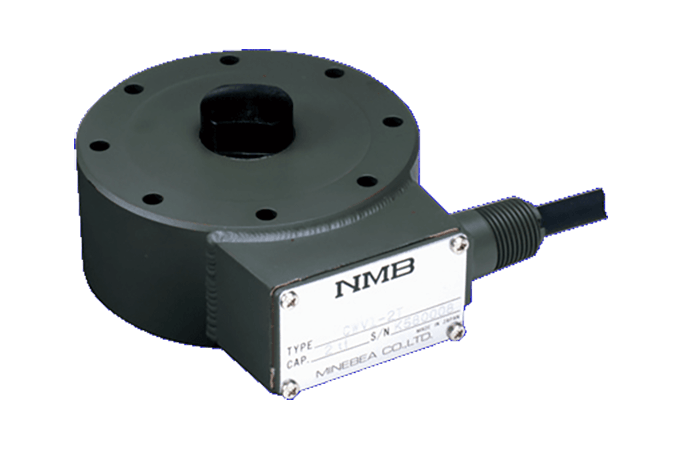

CWV1 Series

Features
  • Low profile, shear web type load cell
  • Strong lateral load
  • Suitable for use in limited space
Resources
CAD Files CWV1-2T (38KB)
CAD Files CWV1-10T (38KB)
CAD Files CWV1-100T (68KB)
Specification Sheet No.KT53644-2 (161KB)
Instruction manual (PDF) No.KT60251-1 (73KB)
Specifications
Rated capacity
19.61 kN{2 tf}~980.7 kN{100 tf}
Safe overload
150% R.C.
Ultimate overload
200% R.C.
Rated output
3 mV/V±0.006 mV/V
Non-linearity
0.05% R.O. (CWV1-50T~100T: 0.1% R.O.)
Hysteresis
0.1% R.O. (CWV1-50T~100T: 0.15% R.O.)
Repeatability
0.02% R.O. (UWV1-50T~100T: 0.05% R.O.)
Excitation, recommended
12 V or less
Excitation, maximum
20 V
Zero balance
±0.03 mV/V
Input resistance
350 Ω±3.5 Ω
Output resistance
350 Ω±5 Ω
Insulation resistance
2,000 MΩ or more (DC50 V) (between bridge and main body)
Temp. range, compensated
-10℃ ~ 70℃
Temp. range, safe
-20℃ ~ 80℃
Temp. effect on zero
0.03% R.O./10℃
Temp. effect on output
0.03% LOAD/10℃
Cable
φ10, 4 -cores shielded 3 m cable directly attached, Y-crimp type terminal lugs are attached at cable end.
Class of protection
IP64 or equivalent
Material of element
Alloy steel
Paint
Painted by epoxy resin (Munsell 6GY3.5/2 half-polished resemblance color)
Durability
1,000,000 times with rated load applied.
List of Part Numbers
Parts No.
Rated capacity
Natural frequency
Rated displacement
Weight
(Approx.)
CWV1-2T
19.61 kN {2 tf}
4,900Hz
0.05 mm
3.1 kg
CWV1-5T
49.03 kN {5 tf}
6,500 Hz
0.05 mm
4 kg
CWV1-10T
98.07 kN {10 tf}
6,300 Hz
0.05 mm
6.4 kg
CWV1-20T
196.1 kN {20 tf}
4,800 Hz
0.05 mm
15.5 kg
CWV1-50T
490.3 kN {50 tf}
5,400 Hz
0.05 mm
29 kg
CWV1-100T
980.7 kN {100 tf}
3,400 Hz
0.09 mm
74 kg
Options
Bearing plate, Mounting plate
