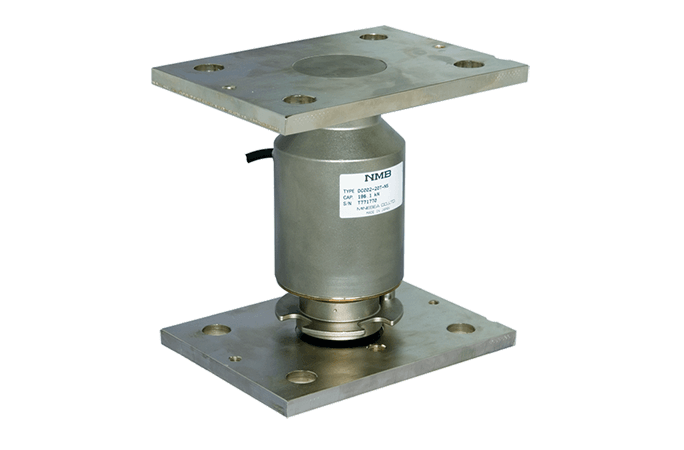

Compression Measurement for Industrial Weighing Systems

DC002 Series

Features
  • Excellent noise tolerance
  • High precision measurement can be performed by the excellent temperature compensation
  • Decrease the error factor with the use of an amplifier
Resources
CAD Files DC002-10T ~ 30T (223KB)
CAD Files DC002-40T (208KB)
CAD Files AIC-005B (142KB)
Specification Sheet No.KT52892-2-E (212KB)
Instruction manual (PDF) No.ENKT60708-1 (56KB)
Specifications
OIML accuracy class
OIML R60 C6
Maximum scale interval
6,000
Rated capacity
10 t ~ 40 t
Minimum detected scale (Vmin)
0.625 kg ~ 2.5 kg
Safe overload
150% R.C.
Ultimated overload
200% R.C.
Rated output
1,000,000 count ±500 count
Non-linearity
0.012% R.O.
Hysteresis
0.012% R.O.
Repeatability
0.010% R.O.
Creep
0.008% R.O./30 min
Zero return
0.008% R.O./30 min
Power supply voltage
DC7.5 V ~ DC15 V
Power consumption
DC35 mA (at DC12 V of power supply)
Insulated resistance
100 MΩ or more (DC50 V)
Temp. range, compensated
-10℃ ~ 40℃
Temp. range, safe
-20℃ ~ 70℃
Temp. effect on zero balance
0.014% R.O./10℃
Temp. effect on output
0.010% LOAD/10℃
Digital output Signal
Differential signal (Conforming to RS-485)
Data output frequency
160 times/s at maximum
Baud rate
57,600 bps
Data bit length
7 bit
Parity bit
Odd
Stop bit
1 bit
Terminator
CR
Transmission method
Half duplex
Synchronous method
Start-stop synchronization
Address
0 ~ 9
No. of Connectable unit
Up to 8 units
Transmission data
ASCII Code
Standard function
Digital filter, Stabilization filter, A/Z, A/Z OFF
Cable
φ7.0, 4-cores shielded 12 m cable and cable end is separated. (DC002-40T: 15 m cable)
Protection class
IP68 or equivalent
Material of element
Alloy steel
Material of cover
Stainless steel (lost wax)
Allowable horizontal moving length
10 mm (Please set the stopper of truck scale within 5 mm.)
Recomended movable range is 2 mm ~ 3 mm.
Accessory
Guide ring, Inspection data sheet
List of Part Numbers
Parts No.
Rated capacity
Minimum detected
scale (Vmin)
Natural frequency
Rated displacment
Weight
(Approx.)
DC002-10T
10 t
0.625 kg
3 900 Hz
0.2 mm
4.5 kg
DC002-20T
20 t
1.25 kg
5 500 Hz
0.2 mm
4.5 kg
DC002-25T
25 t
1.563 kg
6 000 Hz
0.2 mm
4.5 kg
DC002-30T
30 t
1.875 kg
6 700 Hz
0.2 mm
4.5 kg
DC002-40T
40 t
2.5 kg
5 600 Hz
0.2 mm
6.5 kg
Options
Mounting attachment (AIC-005 B), Mounting attachment with slide stop mechanism (CCA-CC002-※)
