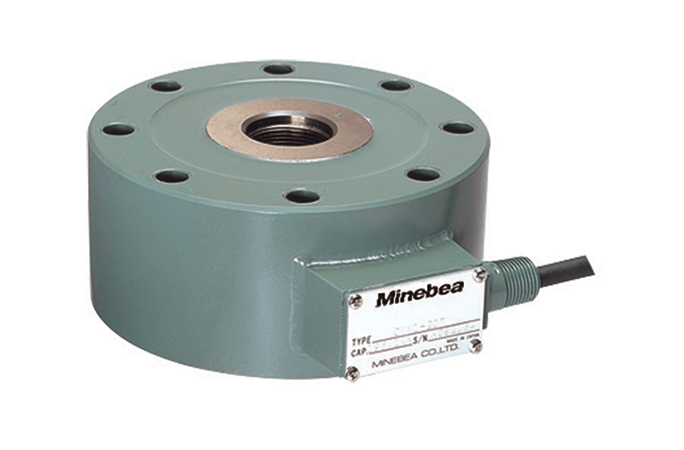

UWV1 Series

Specifications
Rated capacity	19.61 kN{2 tf}~980.7 kN{100 tf}
Safe overload	150% R.C.
Ultimate overload	200% R.C.
Rated output	3 mV/V±0.0075 mV/V
Non-linearity	0.1% R.O. (UWV1-50T~100T: 0.2% R.O.)
Hysteresis	0.1% R.O. (UWV1-50T~100T: 0.2% R.O.)
Repeatability	0.02% R.O. (UWV1-50T~100T: 0.05% R.O.)
Excitation, recommended	12 V or less
Excitation, maximum	20 V
Zero balance	±0.03 mV/V
Input resistance	350 Ω ±3.5 Ω
Output resistance	350 Ω ±5 Ω
Insulation resistance	2,000 MΩ or more (DC50 V) (between bridge and main body)
Temp. range, compensated	-10℃ ~ 70℃
Temp. range, safe	-20℃ ~ 80℃
Temp. effect on zero	0.03% R.O./10℃
Temp. effect on output	0.03% LOAD/10℃
Cable	φ10, 4-cores shielded 3 m cable directly attached, Y-crimp type terminal lugs are attached at cable end.
Class of protection	IP64 or equivalent
Material of element	Alloy steel
Paint	Painted with epoxy resin. (Munsell 6GY3.5/2 half-polished resemblance color)
Durability	1,000,000 times with rated load applied.

List of Part Numbers
Parts No.	Rated capacity	Natural frequency	Rated displacement	Weight (Approx.)
UWV1-2T	19.61 kN {2 tf}	4,900Hz	0.05 mm	3.1 kg
UWV1-5T	49.03 kN {5 tf}	6,500 Hz	0.05 mm	4 kg
UWV1-10T	98.07 kN {10 tf}	6,300 Hz	0.05 mm	6.4 kg
UWV1-20T	196.1 kN {20 tf}	4,800 Hz	0.05 mm	15.5 kg
UWV1-50T	490.3 kN {50 tf}	5,400 Hz	0.05 mm	29 kg
UWV1-100T	980.7 kN {100 tf}	3,400 Hz	0.09 mm	74 kg

Options
Spherical rod end
