Automotive Fans and Blowers

auto-fans-blowers-hero

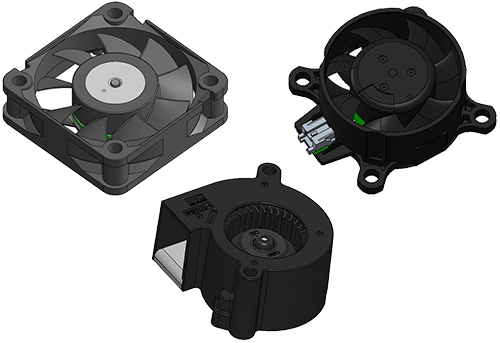

MinebeaMitsumi Technology Center in Europe develops dedicated cooling solutions for the Automotive market. These fans and blowers meet the low noise and low power consumption requirements necessary to optimize the driving experience. Our cooling solutions are used to increase passenger comfort, cool vehicle electronics and displays, and manage heat dissipation during EV/HEV charging. These components are highly custom and can be designed to meet specific OEM requirements.

Features:

  • Ball bearings are used for high reliability and long life
  • Low noise, low vibration
  • Lightweight design
  • IP68 rated options are available
  • Automotive grade
  • Manufactured in TS16949 factories

Applications:

  • Headlight cooling
  • Seat ventilation
  • Infotainment/display cooling
  • ECU/PCU cooling
  • Battery and charger cooling
  • DC-DC converter cooling

Applications

charger-cooling-application

Charger & Battery Cooling

The shift towards electrification has forever changed automotive development. New solutions for EV/HEV vehicles provide low vibration and noise with optimized motor part design and dedicated circuit design. This blower has a small, lightweight package with high reliability and long life.

headlight-cooling-application

LED Headlight Cooling

Low energy LED technology is being incorporated into vehicles to achieve reduced power consumption and heat production. However, in order to realize the long life associated with LEDs, temperature and moisture must be managed by optimized cooling solutions.

seat-cooling-application

Seat Ventilation

More automotive OEMs are adopting seat cooling features to enhance passenger comfort. MinebeaMitsumi’s fan motors are highly reliable, quiet and durable and are widely used in seat ventilation systems. We work directly with OEMs to integrate custom solutions.

Automotive Axial Fans

Model
Number

Size
(mm)

DC Voltage
(V)

Rated Speed
(rpm)

Max Air
Flow
(m3/min)

Max Static
Pressure
(Pa)

Acoustical
Noise @ 1m
(dB)

Operating
Temperature
(℃)

IP Rating

Data
Sheet

ModelNumber

04010UA

Size(mm)

40 x 10

DC Voltage(V)

12

Rated Speed(rpm)

7,500

Max AirFlow(m3/min)

0.19

Max StaticPressure(Pa)

50

AcousticalNoise @ 1m(dB)

29

OperatingTemperature(℃)

-40~105

IP Rating

IP00

DataSheet
sheet-icon
ModelNumber

04020UA

Size(mm)

40 x 20

DC Voltage(V)

13.5

Rated Speed(rpm)

8,500

Max AirFlow(m3/min)

0.27

Max StaticPressure(Pa)

72

AcousticalNoise @ 1m(dB)

37

OperatingTemperature(℃)

-40~105

IP Rating

IP00

DataSheet
sheet-icon
ModelNumber

BLOM2515D

Size(mm)

43 dia x 20

DC Voltage(V)

13.5

Rated Speed(rpm)

7,400

Max AirFlow(m3/min)

0.30

Max StaticPressure(Pa)

88

AcousticalNoise @ 1m(dB)

42

OperatingTemperature(℃)

-40~105

IP Rating

IP00

DataSheet
sheet-icon
ModelNumber

05015UA

Size(mm)

50 x 15

DC Voltage(V)

13.5

Rated Speed(rpm)

5,000

Max AirFlow(m3/min)

0.31

Max StaticPressure(Pa)

36

AcousticalNoise @ 1m(dB)

32

OperatingTemperature(℃)

-40~105

IP Rating

IP00

DataSheet
sheet-icon
ModelNumber

06025UA

Size(mm)

60 x 25

DC Voltage(V)

12

Rated Speed(rpm)

6,000

Max AirFlow(m3/min)

0.73

Max StaticPressure(Pa)

90

AcousticalNoise @ 1m(dB)

37

OperatingTemperature(℃)

-40~105

IP Rating

IP00
IP68 option
(with potting)

DataSheet
sheet-icon
ModelNumber

08038UA

Size(mm)

80 x 38

DC Voltage(V)

12

Rated Speed(rpm)

4,500

Max AirFlow(m3/min)

1.75

Max StaticPressure(Pa)

115

AcousticalNoise @ 1m(dB)

46

OperatingTemperature(℃)

-40~105

IP Rating

IP00
IP68 option
(with potting)

DataSheet
sheet-icon
ModelNumber

09225UA

Size(mm)

92 x 25

DC Voltage(V)

12

Rated Speed(rpm)

4,500

Max AirFlow(m3/min)

2.18

Max StaticPressure(Pa)

98

AcousticalNoise @ 1m(dB)

45

OperatingTemperature(℃)

-40~105

IP Rating

IP00
IP68 option
(with potting)

DataSheet
sheet-icon
Automotive Blowers

Model
Number

Size
(mm

DC Voltage
(V)

Rated Speed
(rpm)

Max Air
Flow
(m3/min)

Max Static
Pressure
(Pa)

Acoustical
Noise @ 1m
(dB)

Operating
Temperature
(℃)

IP Rating

Data
Sheet

ModelNumber

BLOM2325D

Size(mm

52.6 x 54 x 25

DC Voltage(V)

13.5

Rated Speed(rpm)

7,100

Max AirFlow(m3/min)

0.24

Max StaticPressure(Pa)

140

AcousticalNoise @ 1m(dB)

45

OperatingTemperature(℃)

-40~105

IP Rating

IP00

DataSheet
sheet-icon
Contact us for more information about custom cooling solutions for automotive Contact Us
