Dynamic Robotic Payload Manipulation Using MEMS 6-Axis Force/Torque Sensors

High-volume e-commerce fulfillment infrastructures utilize sophisticated automation, yet significant technical challenges remain when managing diverse, non-uniform inventory. Conventional logistics robotics rely primarily on vacuum-based end-effectors, which are optimized for planar, rigid surfaces typical of standard corrugated packaging.

When end-effectors encounter compliant, porous, or irregular geometries—such as textiles, flexible polybags, or heavy tools with non-uniform mass distribution—vacuum seals often fail. These conditions lead to unpredictable shifts in the center of gravity (CoG), resulting in manipulation failures and loss of positional control.

Achieving high-accuracy adaptability requires the integration of tactile feedback systems alongside computer vision. The implementation of 6-axis force/torque (F/T) sensors provides the necessary haptic data for precise closed-loop control during complex manipulation tasks.

Principles of 6-Axis Force/Torque Sensing

A 6-axis F/T sensor is typically integrated at the wrist joint, situated between the manipulator arm and the end-effector. This component quantifies the vector components of force and torque across the three-dimensional Cartesian coordinate system:

• Orthogonal Forces (Fx, Fy, Fz): Linear loads resulting from axial tension or compression.
• Torques (Tx, Ty, Tz): Rotational moments acting around each axis, indicative of leverage or torsional resistance.

By streaming this high-frequency data to the controller, the system can perform real-time analysis of the object’s physical properties and environmental constraints.

Mitigating End-Effector Constraints

For items incompatible with pneumatic suction, robots utilize adaptive mechanical grippers. Without force feedback, these grippers risk damaging fragile payloads through excessive clamping force or fail to maintain adequate friction on slippery surfaces.

Tactile Feedback and Force Regulation

Integrated F/T sensors employ tactile evaluation for irregular geometries. The sensor identifies the precise moment of contact and regulates the gripping force within established safety margins.

The controller monitors micro-frictional variances; sudden force fluctuations signal impending slip, triggering an instantaneous adjustment in normal force to maintain payload stability.

Compensation for Asymmetric Mass Distribution

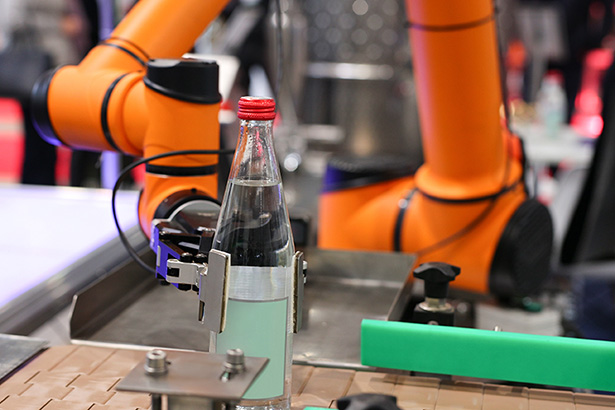

Manipulating objects with shifting or asymmetric Centers of Gravity—such as containers with fluid contents or unevenly distributed mechanical components—introduces significant dynamic instability.

Lifting such objects at the geometric center often generates substantial rotational moments, causing the payload to pivot or drop.

• Standard Systems: Lack of torque data prevents detection of weight imbalances, leading to uncontrolled pivoting and task failure.
• F/T Augmented Systems: The sensor quantifies the exact torque (τ) on the relevant axis during the initial lift phase.

Closed-Loop Compensation Strategies

When the F/T sensor identifies load anomalies, the control software implements real-time reactive strategies:

Conclusion and Engineering Outlook

Integrating 6-axis F/T sensors shifts the paradigm from open-loop path execution to reactive, intelligent manipulation. By enabling the successful handling of payloads with non-standard geometries and dynamic mass distributions, autonomous systems can achieve higher operational reliability, reduced damage rates, and improved throughput in unstructured fulfillment environments.
