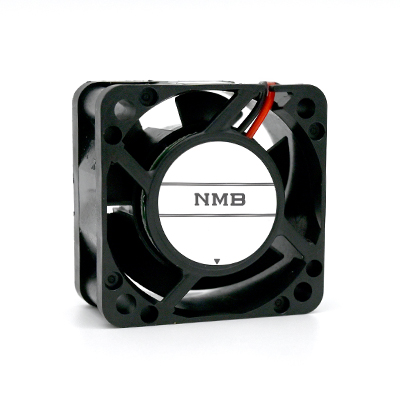

DC Axial Fans - 04020VA-05Q-AA-00
Get a sample
Distributor |
Availability |
|
|---|---|---|
Distributor Mouser Electronics |
Availability 19 |
|
Distributor Digi-Key Electronics |
Availability 354 |
Specification Sheet |
|
Certificates |
|
CAD Files |
|
CAD Files |
|
CAD Files |
|
CAD Files |
Category |
DC Axial Fans |
Part Number |
04020VA-05Q-AA-00 |
COO
|
China
|
Frame Width
[mm]
|
40
|
Frame Height
[mm]
|
40
|
Frame Depth
[mm]
|
20
|
Max. Air Flow
[CFM]
|
12
|
Max. Air Flow
[m3 per min]
|
0.34
|
Max. Static Pressure
[In H2O]
|
0.494
|
Max. Static Pressure
[Pa]
|
123
|
Fan Speed
[RPM]
|
10000
|
Noise
[dB]
|
38
|
Life Expectancy
[L10]
|
40,000 hours at 60C
|
Bearing Type
|
Ball Bearing
|
Nominal Voltage
[V]
|
5
|
Operating Voltage - Lower
[V]
|
4.5
|
Operating Voltage - Upper
[V]
|
5.5
|
Current
[A]
|
0.42
|
Input Power
[W]
|
2.75
|
Mass
[g]
|
40
|
Rib/Flange
|
Rib
|
Tach / Locked Rotor Output
|
Standard 2 Wire
|
