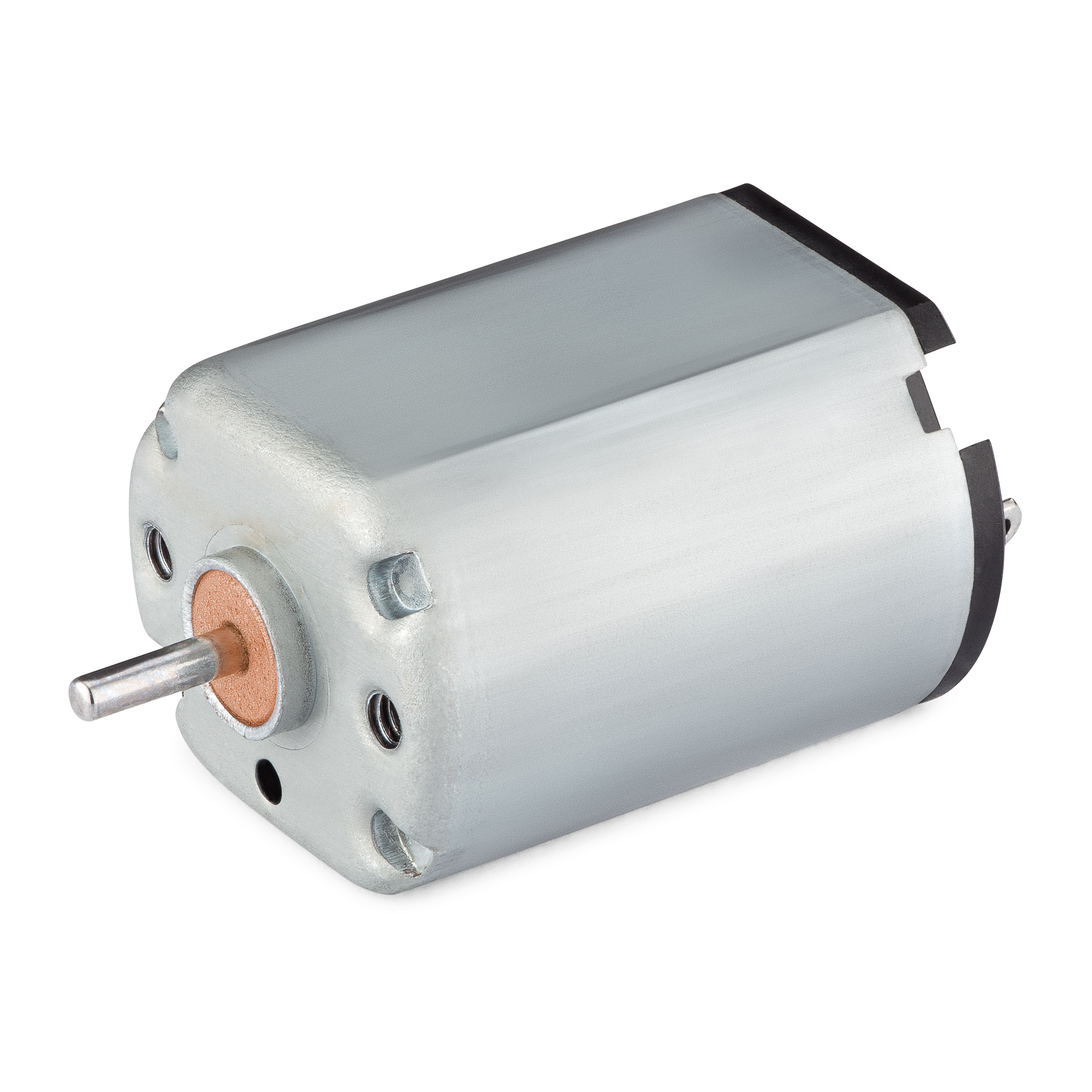

Standard Flat Brush - M1N6FB08
Category |
Standard Flat Brush |
Part Number |
M1N6FB08 |
Brush Material
|
Metal
|
Frame Height (mm)
|
10
|
Frame Length
[mm]
|
15
|
Frame Width (mm)
|
12
|
Mass (g)
|
6
|
No Load Current (mA)
|
30
|
No Load Speed (rpm)
|
14100
|
Operating Voltage - Lower (V)
|
1
|
Operating Voltage - Upper (V)
|
5
|
Rated Current (mA)
|
91
|
Rated Load
[mN-m]
|
0.2
|
Rated Speed (rpm)
|
11600
|
Rated Voltage (V)
|
5
|
Shaft Diameter (mm)
|
1
|
Shaft Length (mm)
|
6.6, 8.6
|
Starting Current (mA)
|
366
|
Starting Torque
[mN-m]
|
1.1
|
