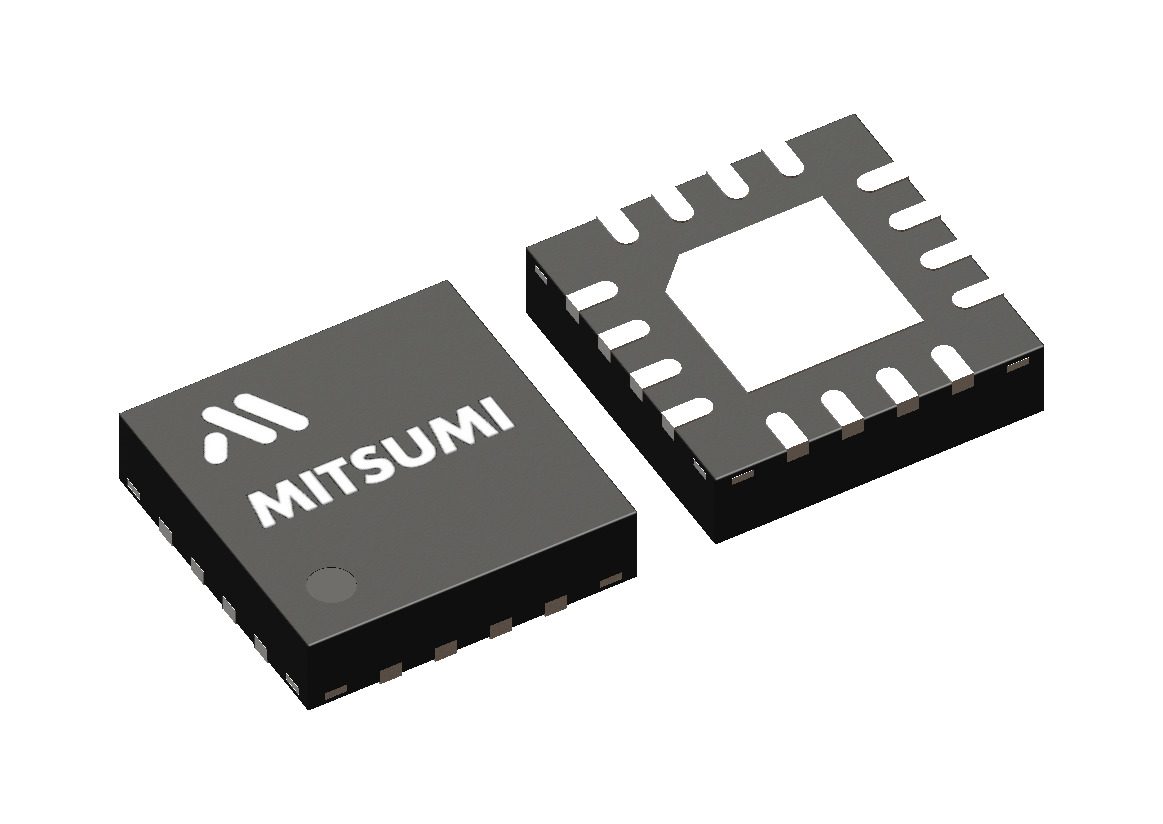

Analog to Digital Converter (ADC) - MM3804A12RLE
Category |
Analog to Digital Converter (ADC) |
Part Number |
MM3804A12RLE |
A/D Architecture
|
Successive-Approximation-Register (SAR)
|
Analog Input Voltage
|
-Vref to +Vref
|
Current Consumption
[mA]
|
6
|
Description
|
12 Bit 2ch 750Ksps SAR A/D Converter IC, SQFN-16A
|
Electrical Interface
|
Compatible SPI
|
Function
|
SAR A/D Converter
|
Height
[mm]
|
0.75
|
INL
[LSB]
|
2
|
Input Channels
|
2ch
|
Input Type
|
Pseudo Differential
|
Length
[mm]
|
3
|
Production Status
|
In Production
|
Offset Error
|
4 LSB
|
Operating Temperature
[C]
|
-40 to +125
|
Operating Voltage
[Vdc]
|
1.65 to 5.5
|
Package
|
SQFN-16A
|
Packing
|
T and R(L)
|
Resolution
[bit]
|
12
|
Sampling Rate
[Ksps]
|
750
|
Width
[mm]
|
3
|
DNL
[LSB]
|
2
|
Input Capacitance
[pF]
|
15
|
Input Vref Voltage
[V]
|
2.25 to 2.5
|
Operating Voltage for Analog
[Vdc]
|
4.5 to 5.5
|
SNR
[dB]
|
71
|
THD
[dB]
|
-76
|
