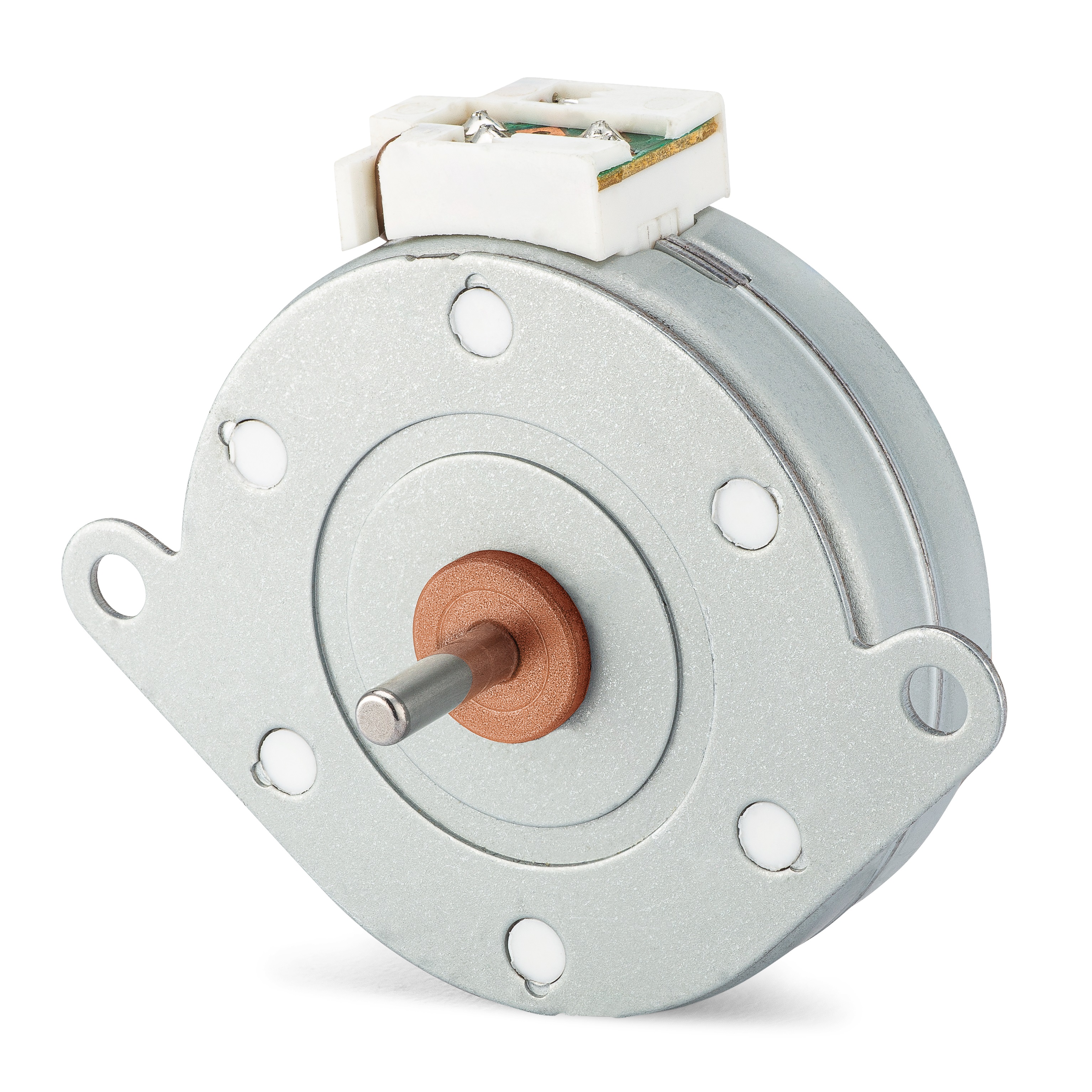

Standard Permanent Magnet - PM42S-048-HHC8
Get a sample
Distributor |
Availability |
|
|---|---|---|
Distributor Digi-Key Electronics |
Availability 26 |
Specification Sheet |
Category |
Standard Permanent Magnet |
Part Number |
PM42S-048-HHC8 |
Frame Width
[mm]
|
42
|
Frame Height
[mm]
|
42
|
Frame Length
[mm]
|
15.5
|
Steps per Rev. of Motor
|
48
|
Step Angle
[degrees]
|
7.5
|
Drive Sequence
|
bipolar constant current
|
Drive Voltage
[V]
|
24
|
Rated Current per Phase
[A]
|
500
|
Resistance
[Ohms]
|
8
|
Magnet Type
|
MS70
|
Magnet Material
|
bonded Nd-Fe-B
|
Holding Torque
[mN-m]
|
45
|
Max Speed
[pps]
|
1800
|
Max Speed
[rpm]
|
2250
|
