Load Cells

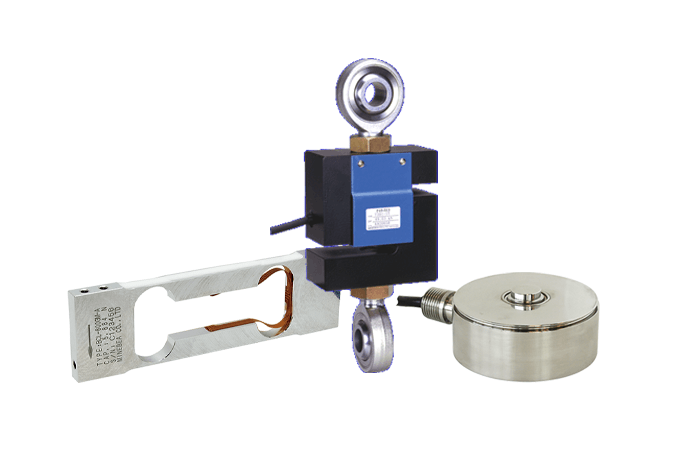

MinebeaMitsumi manufactures load cells that use a strain gauge to convert tension, compression or mass into electric signals. Our strain gauge is manufactured in-house and delivers accuracy and reliability you can trust.
Features:
- High quality and reliability
- Durable for prolonged, stable performance
- OIML certified options
Applications:
- Electronic scales
- Bath scales
- Gaming
- Truck scales
Single Point Measurement for Commercial Scales
BCL – A (General spec.) / BCL – C3 (OIML Standard): Low capacity
Suitable for low capacity scales. Rated capacity: BCL-A [General use] 2.942 N {300 gf}~44.13 N {4.5 kgf} BCL-C3 [OIML standard] 300 g ~ 4.5 kg
CB17 – 11: Low capacity
Suitable for compact scales. Rated capacity: 5.884 N {600 gf}~29.42 N {3 kgf}
C2G1 – A (General spec.) / C2G1-A-C6 (OIML Standard): Medium capacity
OIML R60 certification. Rated capacity: C2G1-A [General use] 58.84 N {6 kgf}~490.3 N {50 kgf}, C2G1-A-C6 [OIML standard] 6 kg ~ 50 kg
CB004 (General spec) / CB004-C4, -C6 (OIML Standard): Medium capacity
OIML R60 certification. Rated capacity: CB004 [General use] 98.07 N {10 kgf}~980.7 N {100 kgf}, CB004-C4 [OIML standard] 10 kg ~ 100 kg, CB004-C6 [OIML standard] 60 kg ~ 100 kg
CB004S (General spec) / CB004S-C3 (OIML Standard): Medium capacity
Stainless steel construction, OIML R60 certification. Rated capacity: CB004S [General use] 98.07 N {10 kgf}~980.7 N {100 kgf}, CB004S-C3 [OIML standard] 10 kg ~ 100 kg
CB14 – 21 (General spec.) / CB14-C6 (OIML Standard): High capacity
Suitable for health meter. OIML R60 certification. Rated capacity: CB14-21 [General use] 980.7 N {100 kgf}~4.903 N {500 kgf}, CB14-C6 [OIML standard] 100 kg ~ 500 kg
U2D1 (General spec.) / U2D1-C3 (OIML Standard): Medium capacity
OIML R60 certification. Rated capacity: U2D1 [General use] 29.42 N {3 kgf}~980.7 N {100 kgf}, U2D1-C3 [OIML standard] 3 kg ~ 100 kg
C2D1 (OIML Standard): High capacity
Multi-point application available. Approved OIML R60 Class C4. Rated capacity: 100 kg ~ 800 kg [OIML standard]
C2T1 – A: Medium capacity scale
Applied for multi-point method platform scale. Rated capacity: 2.942 kN {300 kgf}~68.65 kN {7 tf}
Compression Measurement for Industrial Weighing Systems
CC010-* (General Spec.) / CC010-*-C3 (OIML standard): Double convex canister model
Double convex mechanism. All stainless steel hermetically sealed structure. Available for OIML R60 Class C3 certified model. Rated capacity: CC010-C3 (OIML standard) 2 t ~ 50 t CC010 (General use) 4.903 kN {500 kgf}~490.3 kN {50 tf}
C3B1 – NS (General Spec.) / C3B1 (OIML standard): Beam format
Ideal for floor scales, tank scales and hoppers. Available for OIML R60 Class C4 certified model. Rated capacity: C3B1-NS (General Spec.) 1.961 kN {200 kgf}~49.03 kN {5 tf} C3B1 (OIML standard) 200 kg ~ 5 t
C2B1B (General Spec.) / C2B1B-C3 (OIML standard): Beam format
Ideal for weighing systems for floor / tank / hopper scales. Available for OIML R60 Class C3 certified model. Rated capacity: C2B1B-C3 (OIML standard) 200kg ~ 2 t C2B1B (General Spec.) 200 kg {1.961 kN} ~ 2 t
CBE1 (General Spec.) / CBE1-C3 (OIML standard): Load beam model
Beam type load cell with all stainless structure. Rated capacit : CBE1-C3 (OIML standard) 5 kg ~ 200 kg CBE1 (General Spec.) 49.03 N {5 kgf}~1.961 kN {200 kgf}
CMM1/CMM1R/CMM1J: Compact size compression model
Compact size, lightweight load cell with all stainless steel construction. CMM1R: Equipped with robot cable. Rated capacity: 490.3 N {50 kgf}~19.61 kN {2 tf}
CMP1: Accurate compression model
Precise low profile load cell with all stainless steel structure. Rated capacity: 2.452 kN {250 kgf}~196.1 kN {20 tf}
CCP1 (A): Accurate canister model
Ideal for weigh systems for hoppers, tank scales, etc. Rated capacity: 490.3 N {50 kgf}~196.1 kN {20 tf}
CCP1 – Z: Explosion-proof canister model
Suitable for environments with high explosion risk such as those with flammable liquid or gas. Rated capacity: 1.961 kN {200 kgf}~196.1 kN {20 tf}
CCS1: High capacity compression model
Suitable for large rated capacity. Rated capacity: 490.3 kN {50 tf}~2.942 MN {300 tf}
CCR1(B): High overload capacity compression model
Canister type load cell with safe overload capacity. Rated capacity: 4.903 kN {500 kgf}~196.1 kN {20 tf}
CWV1: Low profile shear-web model
Shear-web type structure with high lateral load strength. Rated capacity: 19.61 kN {2 tf}~980.7 kN {100 tf}
CBC1: Load beam model
Suitable for weighing systems where mounting space is limited. Rated capacity: 49.03 kN {5 kgf} ~ 19.61 kN {2 tf}
CC002: Double convex model
Load cell for truck scales with stainless steel construction. Approved OIML R60 Class C6. Rated capacity: 10 t ~ 30 t
DC002: Double convex model with digital output
Built-in amplifier with excellent noise reduction enables high precision measurement. Approved OIML R60 Class C6. Rated capacity: 10 t ~ 40 t
Tension Measurement for Industrial Weighing Systems
TCP1 Series
Suitable for weighing systems such as hopper, tank, etc. Rated capacity: 490.3 N {50 kgf}~196.1 kN {20 tf}
U3S1 – NS: S-beam model
Suitable for weighing systems such as hopper, tank, etc. Rated capacity: 980.7 N {100 kgf}~49.03 kN {5 tf}
U2S1 (General spec.) / U2S1-C3 (OIML standard): S-beam model
Suitable for weighing systems such as hopper, tank, etc. Rated capacity: U2S1 (General spec.) 1.961 N {200 kgf}~19.61 kN {2 tf} U2S1-C3 (OIML standard) 200 kg ~ 2 t
T3B1: Compact model
Suitable for high-accuracy measurement. Rated capacity: 196.1 N {20 kgf}~49.03 kN {5 tf}
UMM1 / UMM1R: Compact, lightweight model
All stainless structure. UMM1R: Robot cable is attached. Rated capacity: 490.3 N {50 kgf}~19.61 kN {2 tf}
U3B1 – B: Compact model
High accuracy, tension/compression service load cell. Rated capacity: 196.1 N{20 kgf}~9.807 kN{1 tf}
CL – B: Crane applications
Suitable for tension force measurement such as crane wire rope. Rated capacity: 49.03 kN {5 tf}~490.3 kN {50 tf}
Specialty Applications
UWV1: Low profile shear-web model
Shear-web type structure with high lateral load strength. Rated capacity: 19.61 kN {2 tf}~980.7 kN {100 tf}
CM085: Miniature
High accurate, compact and thin type compression service load cell with stopper. Rated capacity: 2 N ~ 2 kN
LSM – B: Miniature
12mm~21mm diameter and suitable for use where space is limited Rated capacity: 4.903 N {500 gf} ~ 19.61 kN {2 tf}
LSMS: Miniature
Miniature type load cell with 5 mm at height and 7 mm at diameter. Rated capacity: 196.1 N {20 kgf} ~ 490.3 kN {50 kgf}
C1W1M: Center hole design
Developed for injection molding machines. Rated capacity: 58.84 kN {6 tf}~490.3 kN {50 tf}
UL/ULA: Small capacity bending beam model
Excellent in small force measurement such as tension of yarn. Rated capacity: 19.61 mN {2 gf}~980.7 mN {100 gf}
UTA: Small capacity bending beam model
The rated capacity is higher than the UL series. Rated capacity: 980.7 mN {100 gf}~19.61 N {2 kgf}
U3C1-B: Load beam bending model
Suitable for weighing systems where mounting space is limited. Rated capacity: 49.03 N {5 kgf}~980.7 N {100 kgf}
