Compression Measurement for Industrial Weighing Systems

CCP1(A) Series

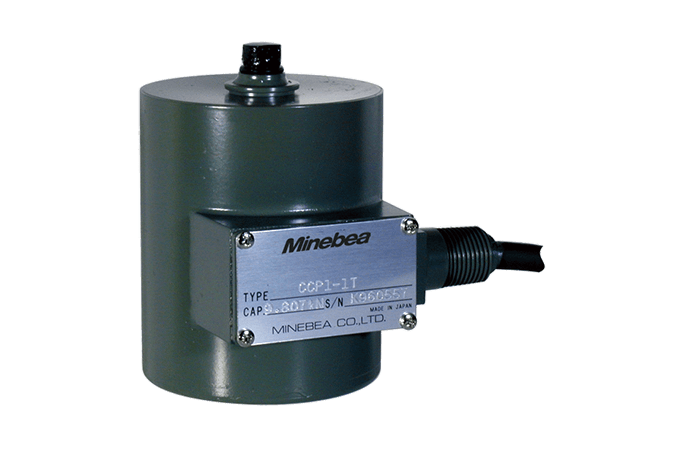

ccp1_a-hero
Features
  • High accuracy canister type
  • Suitable for Tank or Hopper weighing systems
  • High rated output 3 mV/V
Resources
CAD Files CCP1-50K (39KB)
CAD Files CCP1-2T (41KB)
CAD Files CCP1-20T (42KB)
Specification Sheet No.211011-1 (77KB)
Instruction manual (PDF) No.KT60253-1 (75KB)
Specifications
Rated capacity
490.3 N {50 kgf}~196.1 kN{20 tf}
Safe overload
150% R.C. (CCP1-50K~100K: 500% R.C.)
Ultimate overload
200% R.C. (CCP1-50K~100K: 500% R.C.)
Rated output
3 mV/V±0.003 mV/V
Non-linearity
0.05% R.O.
Hysteresis
0.02% R.O.(CCP1-50K~100K : 0.05% R.O.)
Repeatability
0.02% R.O.(CCP1-50K~100K : 0.05% R.O.)
Excitation, recommended
12 V or less
Excitation, maximum
20 V
Zero balance
±0.03 mV/V
Input resistance
350 Ω±3.5 Ω
Output resistance
350 Ω±5 Ω
Insulation resistance
5,000 MΩ or more (DC50 V) (between bridge and main body)
Temp. range, compensated
-10℃ ~ 70℃
Temp. range, safe
-20℃ ~ 100℃
Temp. effect on zero
0.03% R.O./10℃
Temp. effect on output
0.03% LOAD/10℃
Cable
φ10, 4 -cores shielded 3m cable directly attached. Y-crimp type terminal lugs are attached at cable end.
Class of protection
IP64 or equivalent
Material of element
Alloy steel
Paint
Painted by epoxy resin (Munsell 6GY3.5/2 half polished resemblance color)
Durability
1,000,000 times with rated load applied.
List of Part Numbers
Parts No.
Rated capacity
Natural frequency
Rated displacement
Weight
(Approx.)
CCP1-50K
490.3 N {50 kgf}
360 Hz
0.28 mm
3.1 kg
CCP1-100K
980.7 N {100 kgf}
580 Hz
0.23 mm
3.1 kg
CCP1A-200K
1.961 kN {200 kgf}
1,200 Hz
0.18 mm
3.1 kg
CCP1-300K
2.942 kN {300 kgf}
1,400 Hz
0.17 mm
2.7 kg
CCP1-500K
4.903 kN {500 kgf}
1,800 Hz
0.15 mm
2.7 kg
CCP1-1T
9.807 kN {1 tf}
2,800 Hz
0.13 mm
2.7 kg
CCP1-2T
19.61 kN {2 tf}
2,100 Hz
0.17 mm
4.3 kg
CCP1-3T
29.42 kN {3 tf}
2,600 Hz
0.16 mm
4.3 kg
CCP1-5T
49.03 kN {5 tf}
3,500 Hz
0.13 mm
4.3 kg
CCP1-10T
98.07 kN {10 tf}
2,500 Hz
0.18 mm
11.9 kg
CCP1-20T
196.1 kN {20 tf}
1,800 Hz
0.24 mm
27 kg
Options
Expansion plate, Bearing plate, Mounting plate, Mounting attachment with slide-stop mechanism (Flexible stop method: FCA-CCP1)
