CM085 Series

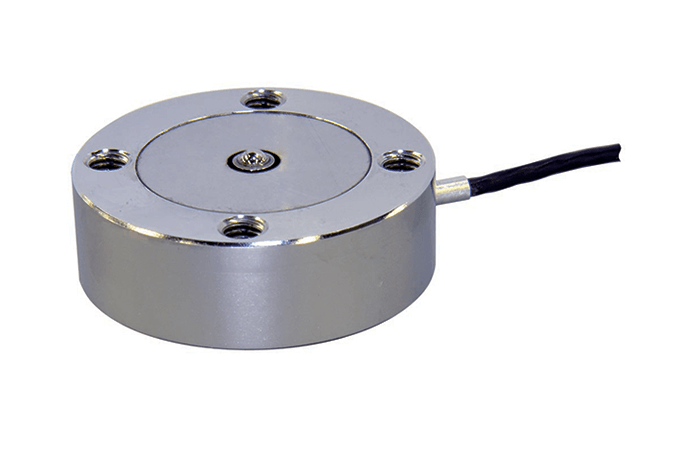

cm085-1ta-hero
Features
  • High accurate, compact and thin type load cell
  • Equipped with stopper for overload protection
  • Main body can be fixed with the screw
Resources
CAD Files DXF (54KB)
Specification Sheet No.KT53210-2-B (180KB)
Instruction manual (PDF) No.KT60101-1 (79KB)
Specifications
Rated capacity
2N~2kN
Safe overload
150% R.C.
Ultimate overload
300% R.C.
Rated output
1.0 mV/V±0.5 mV/V
Non-linearity
0.08% R.O. (2 N~200 N), 0.10% R.O. (500 N, 1 kN), 0.15% R.O. (2 kN)
Hysteresis
0.08% R.O. (2 N~200 N), 0.10% R.O. (500 N, 1 kN), 0.15% R.O. (2 kN)
Repeatability
0.08% R.O. (2 N~200 N), 0.10% R.O. (500 N, 1 kN), 0.15% R.O. (2 kN)
Excitation, recommended
6 V or less
Zero balance
±0.25 mV/V
Input resistance
750 Ω±10 Ω
Output resistance
750 Ω±5 Ω
Insulation resistance
1,000 MΩ or more (DC50 V) (between bridge and main body)
Temp. range, compensated
0℃ ~ 60℃
Temp. range, safe
-10℃ ~ 70℃
Temp. effect on zero
0.3% R.O./10℃
Temp. effect on output
0.1% LOAD/10℃
Cable
φ1.8, 4-cores shielded 3 m cable directly attached, cable end is separated.
Class of protection
IP40 or equivalent
Material of element
Aluminium (CM085-2 N~200 N), Stainless steel (CM085-500 N or more)
Durability
1,000,000 times with rated load applied.
Weight
CM085-2N ~ CM085-200N: Approx.15 g
CM085-500N ~ CM085-2KN: Approx.35 g
List of Part Numbers
Parts No.
Rated capacity
Natural frequency
Rated displacement
Weight
(Approx.)
CM085-2N
2 N
3,900 Hz
0.02 mm
15 g
CM085-5N
5 N
5,800 Hz
0.02 mm
15 g
CM085-10N
10 N
8,500 Hz
0.02 mm
15 g
CM085-20N
20 N
10,700 Hz
0.012 mm
15 g
CM085-50N
50 N
15,900 Hz
0.012 mm
15 g
CM085-100N
100 N
20,500 Hz
0.012 mm
15 g
CM085-200N
200 N
25,600 Hz
0.012 mm
15 g
CM085-500N
500 N
18,000 Hz
0.013 mm
35 g
CM085-1kN
1 kN
22,600 Hz
0.013 mm
35 g
CM085-2kN
2 kN
24,900 Hz
0.013 mm
35 g
