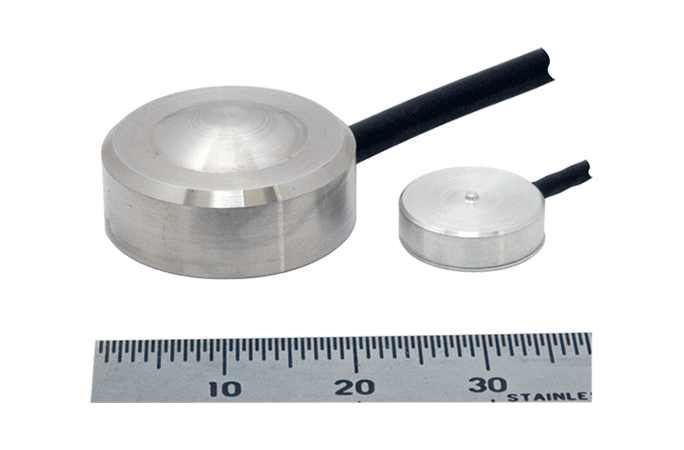

LSM-B Series
Features
- Miniature type load cell, suitable for aplications with limited space
- Fixation can be made by an adhesive or a double-faced tape
| CAD Files | LSM-500G ~ 5K-B (22KB) |
| CAD Files | LSM-500K~2T-B (19KB) |
| Specification Sheet | LSM-500G～100K-B: No.KT50534-2 (125KB) |
| Specification Sheet | LSM-500K～2T-B: No.KT52768-2 (115KB) |
| Specification Sheet | LSM-500G～100K-B-U: No.KT53426-2-A (122KB) |
| Instruction manual (PDF) | No.KT60101-1 (79KB) |
Rated capacity |
4.903 N{500 gf} ~ 19.61 kN{2 tf} |
Safe overload |
150% R.C. |
Ultimate overload |
150% R.C. (500K~2T：200% R.C.) |
Rated output |
0.8 mV/V±0.4 mV/V (LSM-500G-B(-U)), 1.0 mV/V±0.4 mV/V (LSM-1K～100K-B(-U)), 1.5 mV/V±0.5 mV/V (LSM-500K ~ 2T-B) |
Non-linearity |
1% R.O. (LSM-2T-B : 2 %R.O.), (LSM-500G～100K-B-U：0.5% R.O.) |
Hysteresis |
1% R.O. (LSM-500G～100K-B-U：0.5% R.O.) |
Repeatability |
1%R.O. (LSM-500G～100K-B-U：0.5% R.O.) |
Excitation, recommended |
5 V or less |
Excitation, maximum |
8 V |
Zero balance |
±0.2 mV/V |
Input resistance |
350 Ω±10 Ω |
Output resistance |
350 Ω±10 Ω |
Insulation resistance |
1,000 MΩ or more (DC50 V) (between bridge and main body) |
Temp. range, compensated |
0℃ ~ 50℃ (500K~2T: -10℃～60℃) |
Temp. range, safe |
-10℃ ~ 60℃ (500K~2T: -10℃～70℃) |
Temp. effect on zero |
2% R.O./10℃ (500K~2T: 1% R.O./10℃) |
Temp. effect on output |
2% LOAD/10℃ (500K~2T: 1% LOAD/10℃) |
Cable |
φ1.8, 4 -cores shielded 3 m cable directly attached. Cable end separated. (500K~2T : φ3.2、4-cores shielded 3 m cable directly attached.) |
Class of protection |
IP60 or equivalent |
Material of element |
LSM-500G ~ 2K-B(-U): Aluminium alloy LSM-5K ~ 2T-B(-U): Stainless steel (Non-electrolysis nickel plating processing) |
Durability |
1,000,000 times with rated load applied. |
Parts No. |
Rated capacity |
Natural frequency |
Rated displacement |
Weight (Approx.) |
|---|---|---|---|---|
LSM-500G-B(-U) |
4.903 N {500 gf} |
10,000 Hz |
0.05 |
6 kg |
LSM-1K-B |
9.807 N {1 kgf} |
10,000 Hz |
0.05 |
6 kg |
LSM-2K-B(-U) |
19.61 N {2 kgf} |
16,000 Hz |
0.05 |
6 kg |
LSM-5K-B(-U) |
49.03 N {5 kgf} |
21,000 Hz |
0.05 |
6 kg |
LSM-10K-B(-U) |
98.07 N {10 kgf} |
14,000 Hz |
0.05 |
10 kg |
LSM-20K-B(-U) |
196.1 N {20 kgf} |
19,000 Hz |
0.05 |
10 kg |
LSM-50K-B(-U) |
490.3 N {50 kgf} |
29,000 Hz |
0.05 |
20 kg |
LSM-100K-B(-U) |
980.7 N {100 kgf} |
33,000 Hz |
0.05 |
22 kg |
LSM-500K-B |
4.903 kN {500 kgf} |
50,000 Hz |
0.05 |
25 kg |
LSM-1T-B |
9.807 kN {1 tf} |
50,000 Hz |
0.05 |
25 kg |
LSM-2T-B |
19.61 kN {2 tf} |
50,000 Hz |
0.05 |
25 kg |
