Tension Measurement for Industrial Weighing Systems
T3B1 Series
Features

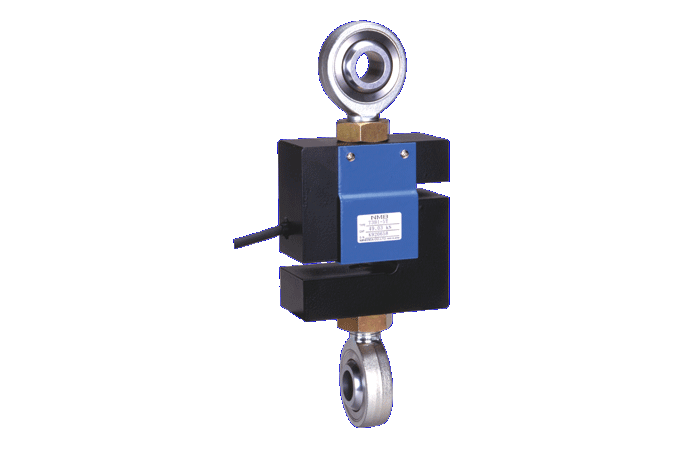

- General purpose tension load cell
- Ideal for coversion of mechanical scales into electronic scales
CAD Files | T3B1-20K (52KB) |
CAD Files | T3B1-200K (52KB) |
CAD Files | T3B1-5T (36KB) |
Specification Sheet | T3B1-20K~1T: No.K900562-2 (159KB) |
Specification Sheet | T3B1-2T, 5T: No.KT51788-2 (143KB) |
Instruction manual (PDF) | No.KT60247-1 (61KB) |
Rated capacity |
196.1 N {20 kgf} ~ 49.03 kN {5 tf} |
Safe overload |
150% R.C. |
Ultimate overload |
200% R.C. |
Rated output |
3 mV/V±0.015 mV/V |
Non-linearity |
0.03% R.O. |
Hysteresis |
0.03% R.O. |
Repeatability |
0.03% R.O. |
Excitation, recommended |
10 V or less |
Excitation, maximum |
15 V |
Zero balance |
±0.03 mV/V |
Input resistance |
350 Ω±3.5 Ω |
Output resistance |
350 Ω±5 Ω |
Insulation resistance |
2,000 MΩ or more (DC50 V) (between bridge and main body) |
Temp. range, compensated |
-10℃ ~ 70℃ |
Temp. range, safe |
-20℃ ~ 80℃ |
Temp. effect on zero |
0.05% R.O./10℃ |
Temp. effect on output |
0.1% LOAD/10℃ |
Cable |
φ6.3, 4 -cores 3 m cable directly attached. Y-crimp type terminal lugs are attached at cable end. |
Class of protection |
IP64 or equivalent |
Material of element |
T3B1-20K~200K: Alluminium alloy T3B1-500K~5T: Alloy steel |
Paint |
Main body: Painted with epoxy resin (Black) Cover: Painted with polyurethane (Blue) |
Durability |
1,000,000 times with rated load applied. |
Parts No. |
Rated capacity |
Natural frequency |
Rated displacement |
Weight (Approx.) |
---|---|---|---|---|
T3B1-20K |
196.1 N {20 kgf} |
600 Hz |
0.18 mm |
0.33 kg |
T3B1-50K |
490.3 N {50 kgf} |
1,100 Hz |
0.16 mm |
0.33 kg |
T3B1-100K |
980.7 N {100 kgf} |
1,600 Hz |
0.14 mm |
0.33 kg |
T3B1-200K |
1.961 kN {200 kgf} |
2,100 Hz |
0.12 mm |
0.33 kg |
T3B1-500K |
4.903 kN {500 kgf} |
2,600 Hz |
0.14 mm |
0.63 kg |
T3B1-1T |
9.807 kN {1 tf} |
3,000 Hz |
0.12 mm |
0.63 kg |
T3B1-2T |
19.61 kN {2 tf} |
2,380 Hz |
0.16 mm |
1.7 kg |
T3B1-5T |
49.03 kN {5 tf} |
2,272 Hz |
0.20 mm |
4 kg |
Spherical rod end |
