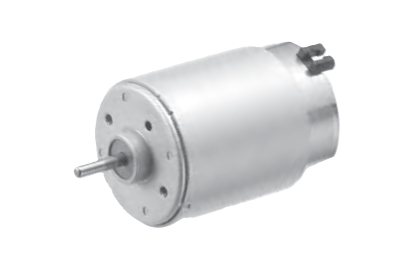

Standard Round Brush - M36N-4E1
Get a sample
Distributor |
Availability |
|
|---|---|---|
Distributor Mouser Electronics |
Availability 39 |
|
Distributor Digi-Key Electronics |
Availability 11 |
Specification Sheet |
Category |
Standard Round Brush |
Part Number |
M36N-4E1 |
Brush Material
|
Carbon
|
Frame Height (mm)
|
38.2
|
Frame Length
[mm]
|
50
|
Frame Width (mm)
|
38.2
|
Mass (g)
|
200
|
No Load Current (mA)
|
110
|
No Load Speed (rpm)
|
3900
|
Operating Voltage - Lower (V)
|
12
|
Operating Voltage - Upper (V)
|
26.4
|
Rated Current (mA)
|
1082
|
Rated Load
[mN-m]
|
54.4
|
Rated Speed (rpm)
|
2935
|
Rated Voltage (V)
|
22.6
|
Shaft Diameter (mm)
|
3.175
|
Shaft Length (mm)
|
18.2
|
Starting Current (mA)
|
4036
|
Starting Torque
[mN-m]
|
220
|
