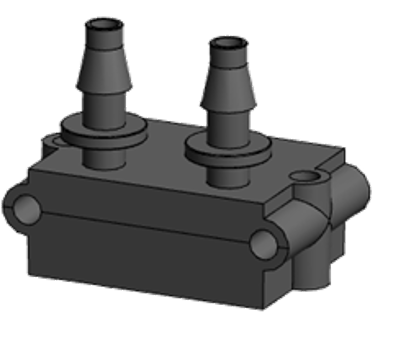

MEMS Differential Pressure Sensors - MMR941C50B
Category |
MEMS Differential Pressure Sensors |
Part Number |
MMR941C50B |
Compensation Temperture
[C]
|
TBD
|
Current Consumption
[mA]
|
1.4(TBD)
|
Description
|
Digital Differential Pressure, +/- 500 Pa, I2C, 29 x 18 x 23.8 (mm) Module, Barbs
|
Effective Resolution at fastest sampling
[Pa RMS]
|
0.05
|
Effective Resolution at slowest sampling
[Pa RMS]
|
0.005
|
Electrical Interface
|
I2C
|
Fastest Sampling Time
[ms]
|
0.4
|
Function
|
Digital output micro differential pressure sensor
|
Height
[mm]
|
23.8
|
Length
[mm]
|
29
|
Max Digital Bit
[bit]
|
24
|
Max Range
[Pa]
|
500
|
Measurement Medium
|
Non-Corrosive Gas
|
Min Range
[Pa]
|
-500
|
Production Status
|
In Plan (Production in CY26)
|
Operating Temperature
[C]
|
-40 to +85
|
Operating Voltage
[Vdc]
|
3.0 to 3.6
|
Package
|
MEMS-4A/4C
|
Packing
|
Tray
|
Slowest Sampling Time
[ms]
|
50
|
Span Accuracy
[percent of FS]
|
1.5(TBD)
|
Technology
|
MEMS PRT
|
Temp.(P) Accuracy
[C]
|
2
|
Total Error
[percent of FS]
|
4(TBD)
|
Width
[mm]
|
18
|
