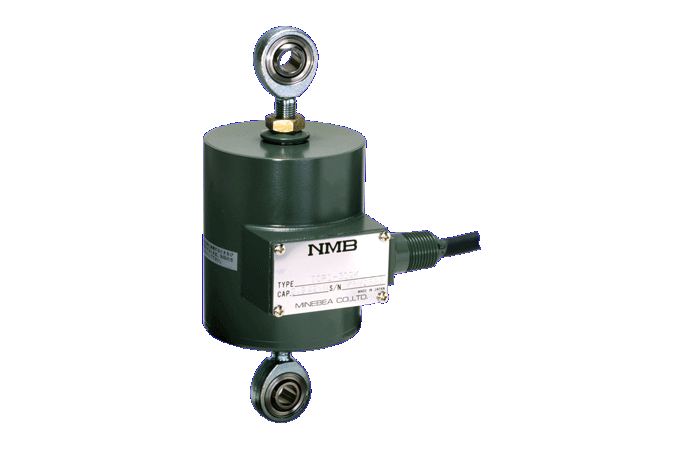

Tension Measurement for Industrial Weighing Systems
TCP1 Series
Features
- High accuracy canister type
- Suitable for tank or hopper, weighing system
CAD Files | TCP1-50K (37KB) |
CAD Files | TCP1-2T (39KB) |
CAD Files | TCP1-20T (39KB) |
Specification Sheet | No.KT52344-2 (168KB) |
Instruction manual (PDF) | No.KT60253-1 (75KB) |
Rated capacity |
490.3 N {50 kgf}~196.1 kN {20 tf} |
Safe overload |
150% R.C. (TCP1-50K~100K: 500% R.C.) |
Ultimate overload |
200% R.C. (TCP1-50K~100K: 500% R.C.) |
Rated output |
3 mV/V±0.003 mV/V |
Non-linearity |
0.05% R.O. |
Hysteresis |
0.02% R.O. (TCP1-50K~100K: 0.05% R.O.) |
Repeatability |
0.02% R.O. (TCP1-50K~100K: 0.05% R.O.) |
Excitation, recommended |
12 V or less |
Excitation, maximum |
20 V |
Zero balance |
±0.03 mV/V |
Input resistance |
350 Ω±3.5 Ω |
Output resistance |
350 Ω±5 Ω |
Insulation resistance |
5,000 MΩ or more (DC50 V) (between bridge and main body) |
Temp. range, compensated |
-10℃ ~ 70℃ |
Temp. range, safe |
-20℃ ~ 100℃ |
Temp. effect on zero |
0.03% R.O./10℃ |
Temp. effect on output |
0.03% LOAD/10℃ |
Cable |
φ10, 4-cores shielded 3 m cable directly attached, Y-crimp type terminal lugs are attached at cable end. |
Class of protection |
IP64 or equivalent |
Material of element |
Alloy steel |
Paint |
Painted with epoxy resin. (Munsell 6GY3.5/2 half-polished resemblance color) |
Durability |
1,000,000 times with rated load applied. |
Parts No. |
Rated capacity |
Natural frequency |
Rated displacement |
Weight (Approx.) |
---|---|---|---|---|
TCP1-50K |
490.3 N {50 kgf} |
360 Hz |
0.28 mm |
3.1 kg |
TCP1-100K |
980.7 N {100 kgf} |
580 Hz |
0.23 mm |
3.1 kg |
TCP1-200K |
1.961 kN {200 kgf} |
1,200 Hz |
0.18 mm |
3.1 kg |
TCP1-300K |
2.942 kN {300 kgf} |
1,400 Hz |
0.17 mm |
2.7 kg |
TCP1-500K |
4.903 kN {500 kgf} |
1,800 Hz |
0.15 mm |
2.7 kg |
TCP1-1T |
9.807 kN {1 tf} |
2,800 Hz |
0.13 mm |
2.7 kg |
TCP1-2T |
19.61 kN {2 tf} |
2,100 Hz |
0.17 mm |
4.3 kg |
TCP1-3T |
29.42 kN {3 tf} |
2,600 Hz |
0.16 mm |
4.3 kg |
TCP1-5T |
49.03 kN {5 tf} |
3,500 Hz |
0.13 mm |
4.3 kg |
TCP1-10T |
98.07 kN {10 tf} |
2,500 Hz |
0.18 mm |
11.9 kg |
TCP1-20T |
196.1 kN {20 tf} |
1,800 Hz |
0.24 mm |
27 kg |
Spherical rod end (REB-*), Swivel clevis shank (SCS-*) |
